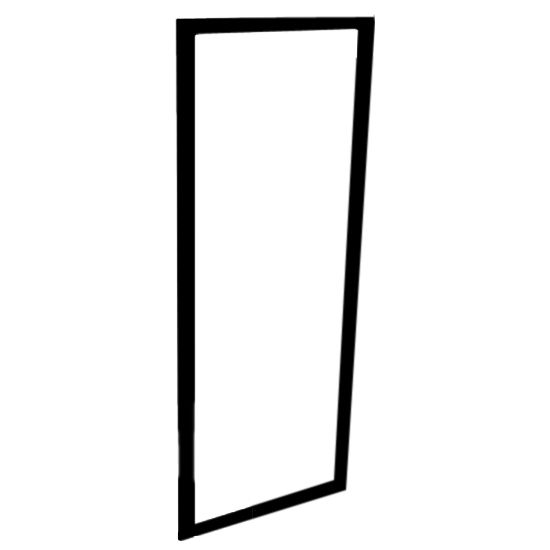

Build Your Own Gasket
Fast Free Shipping On All Orders · Hi-Quality - Made in the USA
Verified Compatibility
Show all ▾Guaranteed safe & secure checkout
- Better than OEM Quality. Designed to Last.
- 2 Gen Hi-Energy Magnets for better Seal.
- Thermal Welded Corners Strong for life.
- USDA, NSF, Approved Gasket Material.
- Proudly 100% made in the USA.
- 1 to 3 Business Days to Ship.
We make Commercial Refrigeration Gaskets. That's our specialty and we do it better than anyone else. We extrude the PVC gasket material, magnet and assemble your gasket in our state of the art facility in South Dakota.
Each gasket is custom-made for your order. Ships in 3-5 Days.
Wrong size? Contact us within 30 days. We'll send the correct replacement or full refund. Read our return & refund policy here.
This gasket may be used to replace models and OEM parts as described; however, we cannot guarantee compatibility with your unit based on model number alone. If you are not sure of the gasket you need, please contact us (877) 434-1985 and we can walk you through making sure you get the right gasket. The best way to confirm you are ordering the right gasket is to confirm the size of the gasket you need and also the profile of the gasket you need. (Our measurements are always outside edge to outside edge on the website).
Customers Also Bought
View all →
How to Measure Your Gasket
Getting the size right is the single most important step. Pick the method that matches your situation — both take under 60 seconds with a tape measure.
Corner to Corner
The easiest method. Measure your existing gasket from the outside edge to outside edge — across both the width and height — to the nearest 1/8th of an inch.
Dart to Dart
Use this if your old gasket is missing or destroyed. Measure the door track channel from dart to dart — the grooves where the gasket's arrow-shaped edges snap in.
Three Gasket Mounting Styles
Every commercial door uses one of three mounting systems. Peek at your old gasket — it'll match one of these three exactly.
Snap On
Held on by a dart (arrow-shaped edge) that snaps firmly into a groove on the door. No tools required — pushed in by hand.
⚡ Easiest to replace
Push In
Held on by a barbed insert that smashes firmly into the door track. Slightly more force to install, but no screws needed.
🛠 Tool-free install
Bolt On
Held on by a metal retainer plate and screws. Takes a screwdriver to install, but it's the most secure fit for walk-ins and heavy-use doors.
🔩 Screwdriver neededWhere to Find Your Model & Serial Number
Every commercial unit has a metal data plate — usually tucked inside the cabinet. Here's exactly where to look and what to do if it's missing.
Sample Data Plate
1 Check the interior side walls
Most data plates are riveted to one of the interior side walls near the top or bottom. Shine a flashlight inside your cooler or freezer and scan all four walls — the plate is metal, usually silver or gold, about the size of a playing card.
2 Read the Model + Serial numbers
With both numbers in hand, type them into the search bar at the top of our site and we'll match your exact gasket instantly. Have the OEM part number from the manufacturer? Even better — paste that in.
3 Data plate missing or illegible?
Abrasive cleaners and years of use can wear data plates clean off. If you can't find yours, use our Build Your Own Gasket tool to submit custom measurements instead, or call us and we'll help identify your unit from door dimensions and door-swing style.
Still stuck? Our gasket experts are standing by.
Call us and we'll ID your unit over the phone in under 5 minutes.
